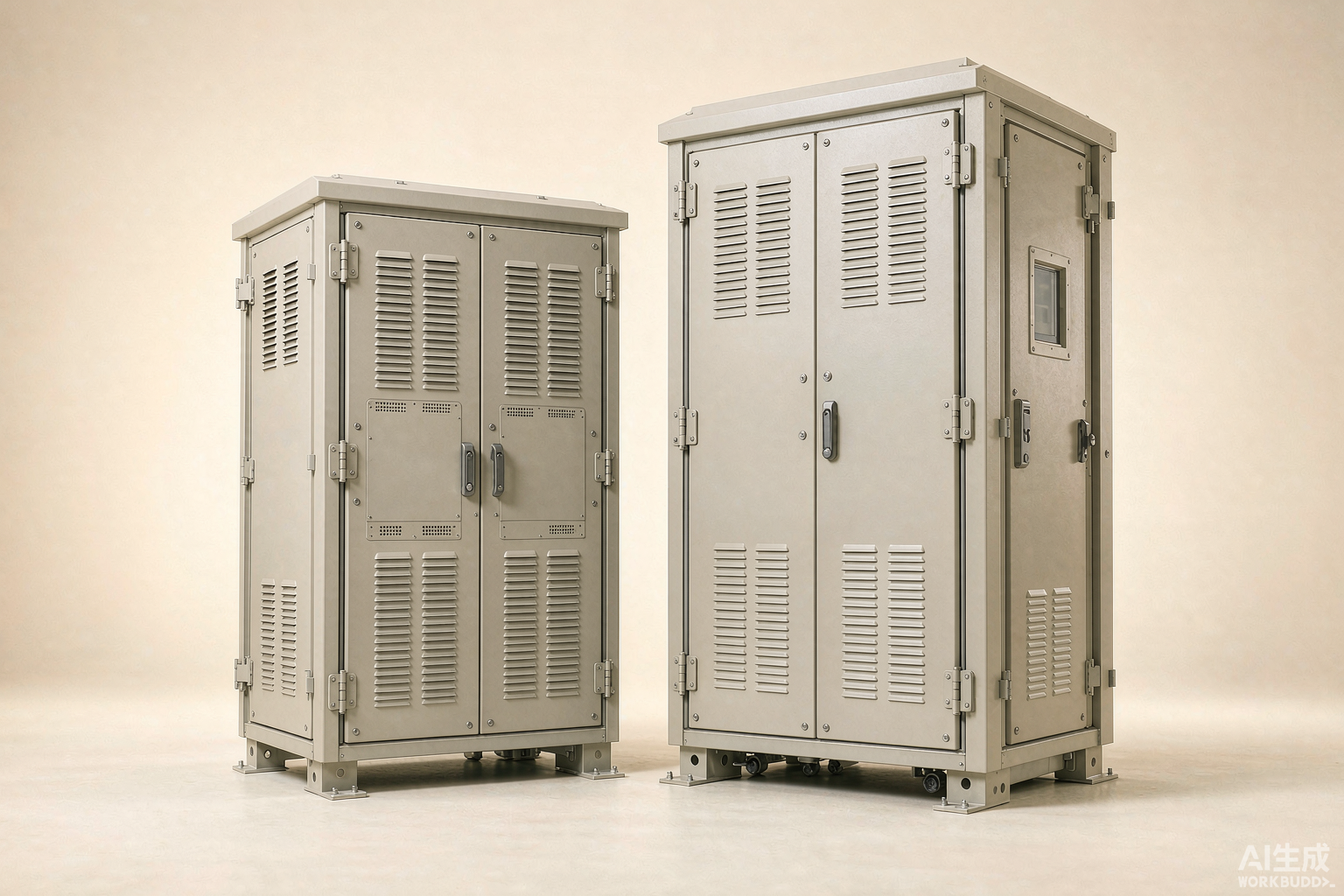

5G Base Station Power Cabinet
5G 基站电源柜
Outdoor waterproof dust-proof cabinets for 5G communication base stations.
5G 通信基站的户外防水防尘电源柜。
Telecom & Network通信网络
Telecom Cabinets & Network Equipment Enclosures通信机柜与网络设备外壳
We manufacture 5G base station power cabinets, fiber-optic distribution boxes, network device chassis and communication racks. Waterproof, dust-proof and anti-static enclosures for outdoor telecom infrastructure.
我们生产 5G 基站电源柜、光纤分纤盒、网络设备外壳及通信机柜。防水、防尘、防静电，适用于户外通信基础设施。
Product Range
产品系列
Fiber Optic Distribution Box
光纤分纤盒
Wall-mounted and pole-mounted boxes for fiber splicing and distribution.
壁挂/抱杆式光纤熔接与分纤盒。
Network Device Chassis
网络设备外壳
1U–4U chassis for routers, switches and communication modules.
路由器、交换机与通信模块的 1U–4U 外壳。
Communication Cabinet / Rack
通信机柜
19-inch racks and cabinets for data and telecom rooms.
数据中心与通信机房的 19 英寸机架机柜。
Server Rack Enclosure
服务器机架
Enclosures for servers and networking hardware with cable management.
服务器与网络硬件的机架外壳，含线缆管理。
Outdoor Telecom Cabinet
户外通信机柜
IP55/IP65 outdoor cabinets for street-side telecom equipment.
路边通信设备的 IP55/IP65 户外机柜。
Technical Capabilities
技术能力
| Material | 材料 | SPCC, SGCC, stainless steel 304/316, aluminum 5052/6063 | SPCC、SGCC、不锈钢 304/316、铝板 5052/6063 |
|---|---|---|---|
| Thickness | 板厚 | 0.5 – 6.0 mm | 0.5 – 6.0 mm |
| Process | 工艺 | Laser cutting, CNC bending, punching, welding, riveting, grinding | 激光切割、数控折弯、冲压、焊接、铆接、打磨 |
| Finish | 表面处理 | Electrostatic powder coating, anodizing, screen printing | 静电粉末喷涂、阳极氧化、丝印 |
| Protection | 防护等级 | IP54 / IP55 / IP65 | IP54 / IP55 / IP65 |
| Tolerance | 精度 | ±0.1 mm | ±0.1 mm |
| MOQ | 起订量 | 1 piece (no mold required) | 1 件（无需开模） |
Applications
应用场景
5G Infrastructure
5G 基础设施
Base station power and equipment cabinets.
基站电源与设备机柜。
Fiber Networks
光纤网络
Distribution and splicing boxes for FTTH.
FTTH 分纤与熔接盒。
Data Centers
数据中心
Server racks and network chassis.
服务器机架与网络外壳。
Frequently Asked Questions
常见问题
What standards do your telecom cabinets comply with?通信机柜符合哪些标准？
Our telecom cabinets are designed around 19-inch EIA rack standards, IEC 61587 for outdoor enclosures and IP55/IP65 ingress protection. EMC shielding and grounding options are available.我们的通信机柜按 19 英寸 EIA 机架标准、IEC 61587 户外机柜标准和 IP55/IP65 防护设计，可选 EMC 屏蔽与接地。
Can you customize 19-inch rack cabinets and fiber-optic enclosures?可以定制 19 英寸机柜和光纤箱吗？
Yes. We build 19-inch server racks, wall-mount fiber boxes, pole-mounted cabinets and 5G base station power enclosures, with adjustable rails, cable managers and ventilation.可以。我们生产 19 英寸服务器机柜、壁挂光纤箱、抱杆柜和 5G 基站电源柜，配可调导轨、理线架和通风结构。
How do you ensure thermal management in outdoor telecom cabinets?户外通信柜如何保障散热？
We combine louvered vents, axial fans, heat exchangers, air conditioners and chimney-style roofs based on heat load and ambient temperature, keeping electronics within safe operating ranges.根据热负荷与环境温度，我们组合百叶窗、轴流风扇、热交换器、空调和烟囱式顶盖，确保电子设备在安全温度范围运行。
What cable entry and sealing options are available?有哪些线缆进线与密封方案？
Options include brush cable entries, rubber grommets, metal cable glands, bottom/top cable channels and sealed conduit plates to prevent dust and water ingress.可选毛刷进线、橡胶护线圈、金属防水接头、底部/顶部走线槽和密封导管板，防止灰尘与水进入。
Do you offer EMC shielding for sensitive network equipment?敏感网络设备可以提供 EMC 屏蔽吗？
Yes. We can add conductive gaskets, EMI shielding vents, copper-tape seams and dedicated grounding studs to reduce electromagnetic interference for sensitive telecom gear.可以。我们可增加导电密封条、EMI 屏蔽通风口、铜箔接缝和专用接地柱，降低敏感通信设备的电磁干扰。
Need a telecom enclosure quote?
需要通信外壳报价？
Send your drawing or specifications — we reply with a DFM review and quote within 24 hours.
发送图纸或规格，我们 24 小时内回复 DFM 评审与报价。
